PE HDPE Plastic Waterproof Geomembrane Agricultural Film Sheet Making Machine

Brand Name : HSD

Model Number : HSD-S001

Certification : CE, ISO9001:2008

Place of Origin : Qingdao,China

MOQ : 1 set

Price : US$43000

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Packaging Details : Stardard Package

Product Type : PE Board

Board Layers : Single Plate

Screw No. : Single-screw

Automation : Automatic

Computerized : Computerized

Condition : New

Sheet Width : 300-7000mm

Thickness : 0.2-30mm

Color : by Buyer′s Opinion

Extrusion System : Mono-Layer or Multi-Layer

Raw Material : PE/ PP

Transport Package : Wooden Cases and Pallets

Specification : CE, ISO9001: 2008, SGS

Trademark : Huashida

Origin : Qingdao, China

HS Code : 8477209000

Production Capacity : 100 Sets /year

Contact Now

Product Description

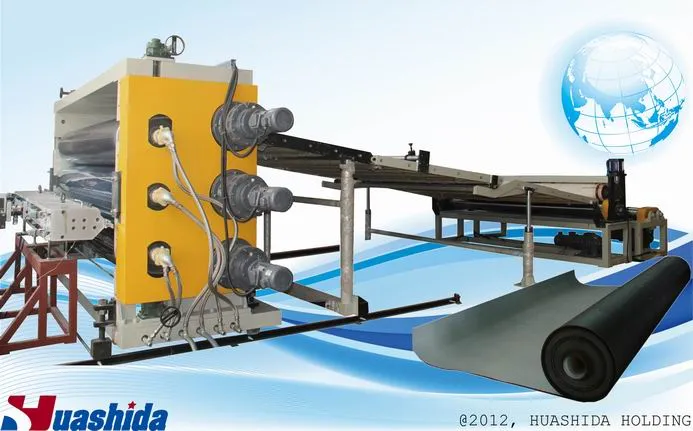

PE HDPE Plastic Waterproof Geomembrane Agricultural Film Sheet Making Machine

Description of the production:

Water-proof Coiled Material/GEO-membrance Film Extrusion Line is a super-large water-proof Coiled material. The mainly material for the film is various kinds of polymer, such as PE, PP, PET, PVC, EVA etc. The max width is 8000mm, the thickness from 0.1 to 3.0mm. In order to meet different customers with different requirements, other auxiliary equipment could be arranged.
PE HDPE Plastic Waterproof Geomembrane Agricultural Film Sheet Making Machine

PE HDPE Plastic Waterproof Geomembrane Agricultural Film Sheet Making Machine

Brief introduction of geomembrane

Geomembranes are specialized double-surface membranes made from virgin resin, known for their excellent impermeability, antifouling properties, and mechanical strength. They maintain dimensional and chemical stability, while also offering thermal and aging resistance, as well as protection against UV radiation. With a high friction coefficient, geomembranes provide effective skid resistance, making them suitable for sloped surfaces. Their enhanced bearing capacity improves structural support, making them ideal for landfill construction and projects that require earth-covered slopes. Overall, geomembranes are essential for ensuring reliable waterproofing and stability in various applications.

Application:
Mainly used in the landfill plant, waste water treatment plants, subway project, tunnel construction, artificial lake, industrial water-proof and other projects.

GEO-membrance film characteristics:

1.Width and thickness can be adjusted by online set.
2. High strenght and thoughness.
3. Excellent stress cracking resistance.
4. Large temperature range.
5. Easy operation for construction.
6. Other undergound works and complex terrain.
PE HDPE Plastic Waterproof Geomembrane Agricultural Film Sheet Making Machine

Composition of production line
- Extruder:

PP/PE high efficiency single screw extruder, the extruding part adopts the forced water-cooled feeding section, the machine cylinder is grooved, and the power consumption of the main drive motor is greatly reduced. Large length to diameter ratio, better adaptability to materials, better plasticizing effect.
PE HDPE Plastic Waterproof Geomembrane Agricultural Film Sheet Making Machine

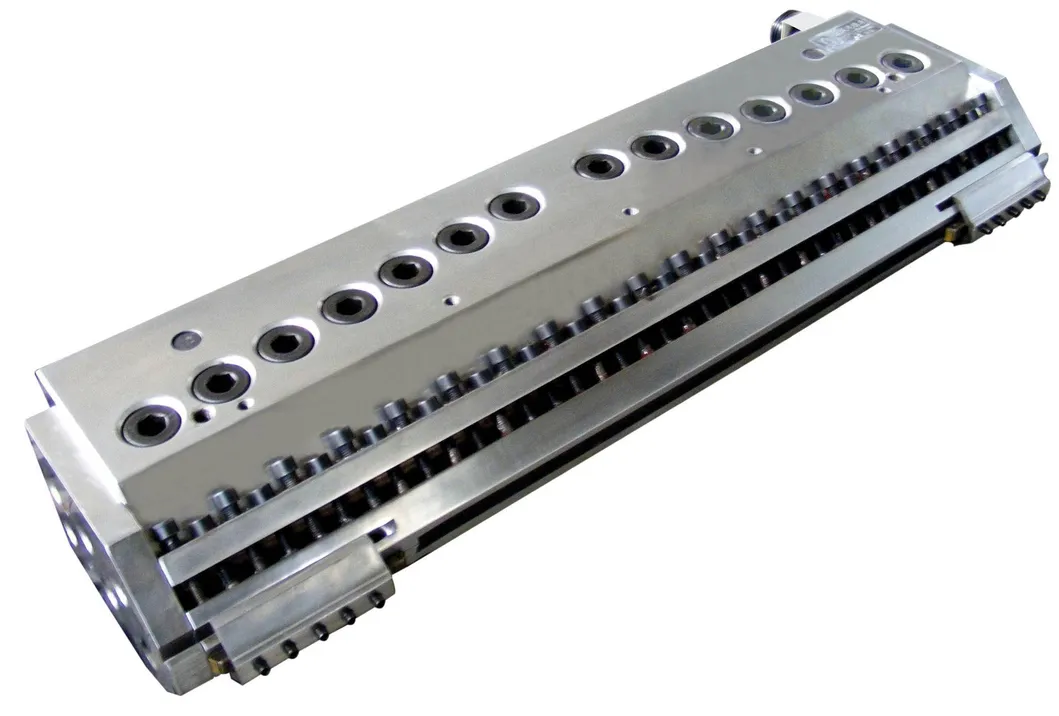

- Die-head

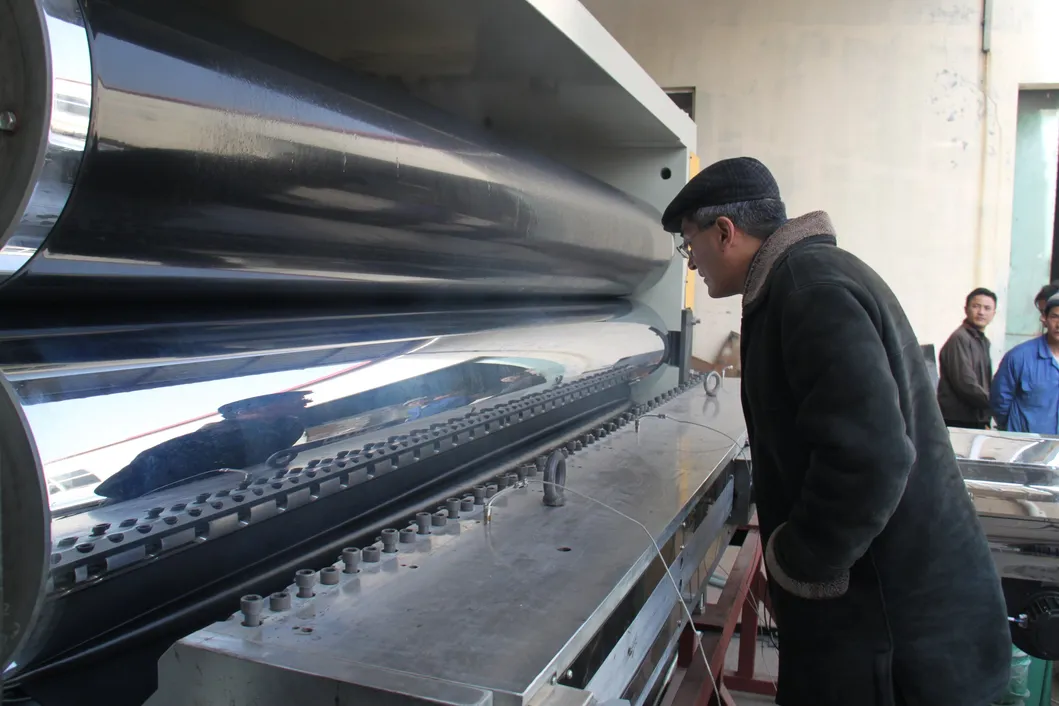

- Three-roll calender

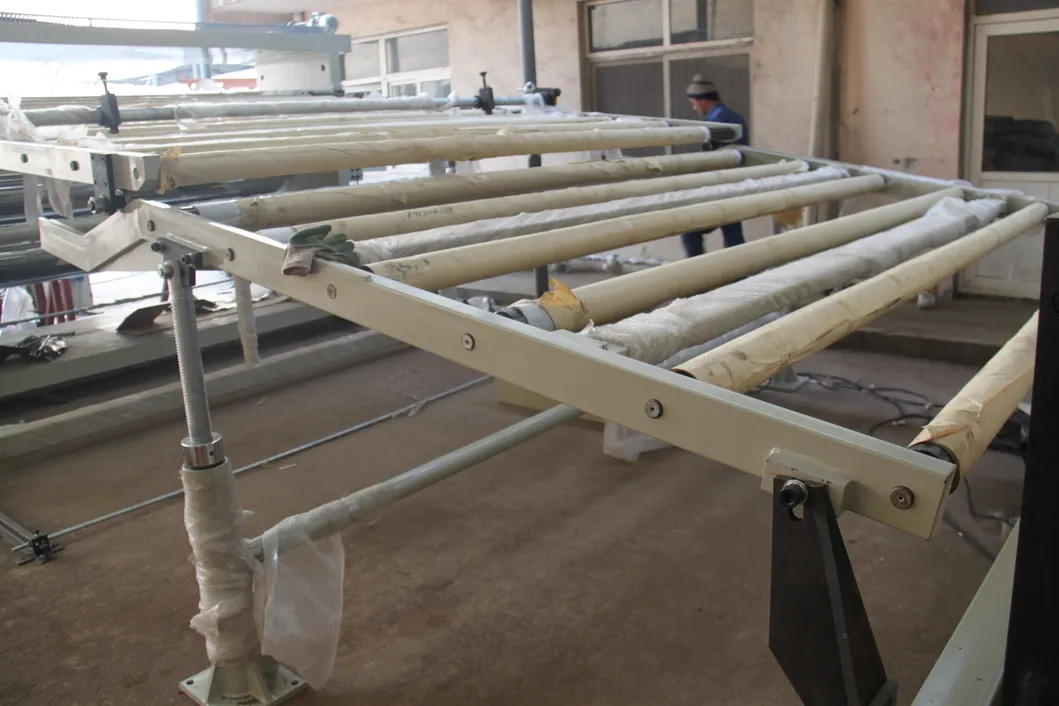

- Cooling bracket
PE HDPE Plastic Waterproof Geomembrane Agricultural Film Sheet Making Machine

- Controlling system

Technical parameters

Extruder	Film Width	Film Thickness	Capacity	Total Power	Dimension(m)
SJ120/33	3000mm	0.5-2.0mm	500kg/h	250kw	20x4x2.5
SJ200/33	8000mm	0.8-3.0mm	1200kg/h	550kw	22x10x2.5
